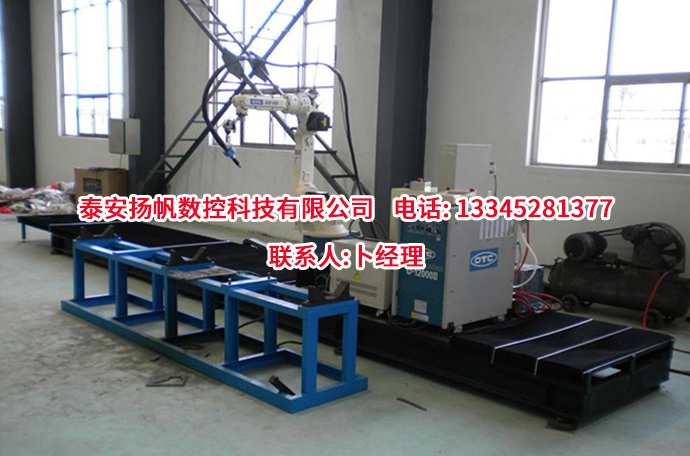

數控設備保養如同設備體檢，其主要目的是：通過設備保養發現設備存在的問題，對發現的問題進行處理或提出處理建議。盡量避免山東數控焊接設備問題的惡化，減少設備損失，減少偶發設備停機事件，更好的保障設備的有效運行。

The maintenance of CNC equipment is like a physical examination of the equipment, and its main purpose is to discover equipment problems through equipment maintenance, and to handle or provide suggestions for handling the discovered problems. Try to avoid the deterioration of Shandong CNC welding equipment problems, reduce equipment losses, reduce occasional equipment downtime events, and better ensure the effective operation of the equipment.

冷卻系統的清理

Cleaning of the cooling system

由于切屑長時間在冷卻箱內不斷沉積，切屑過多后影響冷卻箱有效容積，易造成濾網堵塞，影響冷卻泵正常抽取冷卻液。

Due to the continuous deposition of chips in the cooling box for a long time, excessive amount of chips can affect the effective volume of the cooling box, easily causing clogging of the filter screen and affecting the normal extraction of coolant by the cooling pump.

冷卻系統的清理可避免或減少加工過程中出現的冷卻流量不足或冷卻停止等現象。

The cleaning of the cooling system can avoid or reduce phenomena such as insufficient cooling flow or cooling stoppage during the processing.

冷卻液自身是有使用壽命的，如乳化液長時間使用不清理不更換，變質后的乳化液污染加工環境，防銹防腐性能缺失后易損壞設備機械部件。

The coolant itself has a service life. If the emulsion is not cleaned or replaced for a long time, the deteriorated emulsion will pollute the processing environment, and the lack of rust and anti-corrosion performance can easily damage the mechanical components of the equipment.

液壓系統的清理

Cleaning of hydraulic system

液壓系統中的泵頭、電磁閥、液壓缸等部件在運行過程中會產生磨損，磨損產生的微小金屬粉末與液壓油混合在一起，使液壓油潔凈度逐漸下降，污染的液壓油會加劇液壓系統的磨損。

The pump head, solenoid valve, hydraulic cylinder and other components in the hydraulic system will experience wear during operation. The small metal powder produced by wear will mix with the hydraulic oil, gradually reducing the cleanliness of the hydraulic oil. The contaminated hydraulic oil will exacerbate the wear of the hydraulic system.

液壓系統的清理，液壓油的更換，可提高液壓系統的使用壽命，保證液壓系統的運行穩定。

The cleaning of the hydraulic system and the replacement of hydraulic oil can improve the service life of the hydraulic system and ensure its stable operation.

氣動系統的清理

Cleaning of pneumatic systems

氣動系統過濾器的檢查清理，是保證設備氣源質量的重要步驟。

The inspection and cleaning of pneumatic system filters is an important step in ensuring the quality of equipment air supply.

針對一些配有主軸軸承氣霧潤滑，主軸軸承吹氣，光柵尺吹氣，對刀儀吹氣等場合，對氣源質量要求非常嚴格，若機床過濾系統損壞或存在隱患，易造成較大的經濟損失。

For some occasions equipped with spindle bearing air mist lubrication, spindle bearing blowing, grating ruler blowing, tool setting instrument blowing, etc., the quality requirements for the air source are very strict. If the filtering system of the machine tool is damaged or there are hidden dangers, it is easy to cause significant economic losses.

散熱系統風扇

Cooling system fan

散熱系統風扇及相關過濾網長時間運行，易造成過多油泥灰塵堆積，過濾堵塞影響空氣流通，風扇油泥過多影響風扇運轉。

Long term operation of the cooling system fan and related filter screens can easily cause excessive accumulation of oil sludge and dust, filter blockage affecting air circulation, and excessive fan oil sludge affecting fan operation.

散熱系統運行不良或故障易造成設備過熱，引起相關部件損壞。

Poor operation or malfunction of the cooling system can easily cause equipment overheating and damage to related components.

此外過多污物堆積在導軌絲杠周邊，易造成導軌絲杠磨損。過多污物堆積導軌護板下方，易堵塞冷卻液回流孔、回流槽，阻塞后過高液位造成絲杠、軸承、電機浸泡，造成相關部件損壞。更多相關事項就來我們網站http://www.xfkjgs.com咨詢吧！

In addition, excessive accumulation of dirt around the guide screw can easily cause wear on the guide screw. Excessive accumulation of dirt under the guide rail guard plate can easily block the coolant return hole and groove. After blockage, the high liquid level can cause immersion of the screw, bearing, and motor, causing damage to related components. For more related matters, come to our website http://www.xfkjgs.com Consult!
