環縫自動焊機是一種能完成各種圓形、環形焊縫焊接的通用自動焊接設備。可用于碳鋼、低合金鋼、不銹鋼、鋁及其合金等材料的優良焊接，并可選擇氬弧焊（填絲或不填絲）、熔化極氣體保護焊，等離子焊等焊接電源組成一套環縫自動焊接系統。下面山東焊接專機廠家來講講環縫焊接專機功能特點：

Circular seam automatic welding machine is a universal automatic welding equipment that can complete various circular and circular weld seams. It can be used for excellent welding of materials such as carbon steel, low alloy steel, stainless steel, aluminum and its alloys, and can choose welding power sources such as argon arc welding (with or without wire filling), gas shielded metal arc welding, plasma welding, etc. to form a set of automatic circumferential welding system. Below, the Shandong welding machine manufacturer will talk about the functional characteristics of the circumferential welding machine:

1.根據工件形狀大小不不同，可將環縫自動焊機分為：a立式環縫自動焊機、b臥式環縫自動焊機；

1. According to the different shapes and sizes of workpieces, automatic circumferential welding machines can be divided into: a vertical circumferential welding machine, b horizontal circumferential welding machine;

2.立式環縫自動焊機是一種小巧、價廉物美、操作簡單方便，能完成各種小型的圓形、環形焊縫焊接的通用自動焊接設備。其特點就是適用于一些小型工件的環縫焊接,而且工件不宜過，長如手指長短的工件較適合焊接；

2. The vertical circumferential automatic welding machine is a compact, cost-effective, and easy to operate universal automatic welding equipment that can complete various small circular and circumferential welding seams. Its characteristic is that it is suitable for circumferential welding of some small workpieces, and the workpieces should not be too long. Workpieces as long as fingers are more suitable for welding;

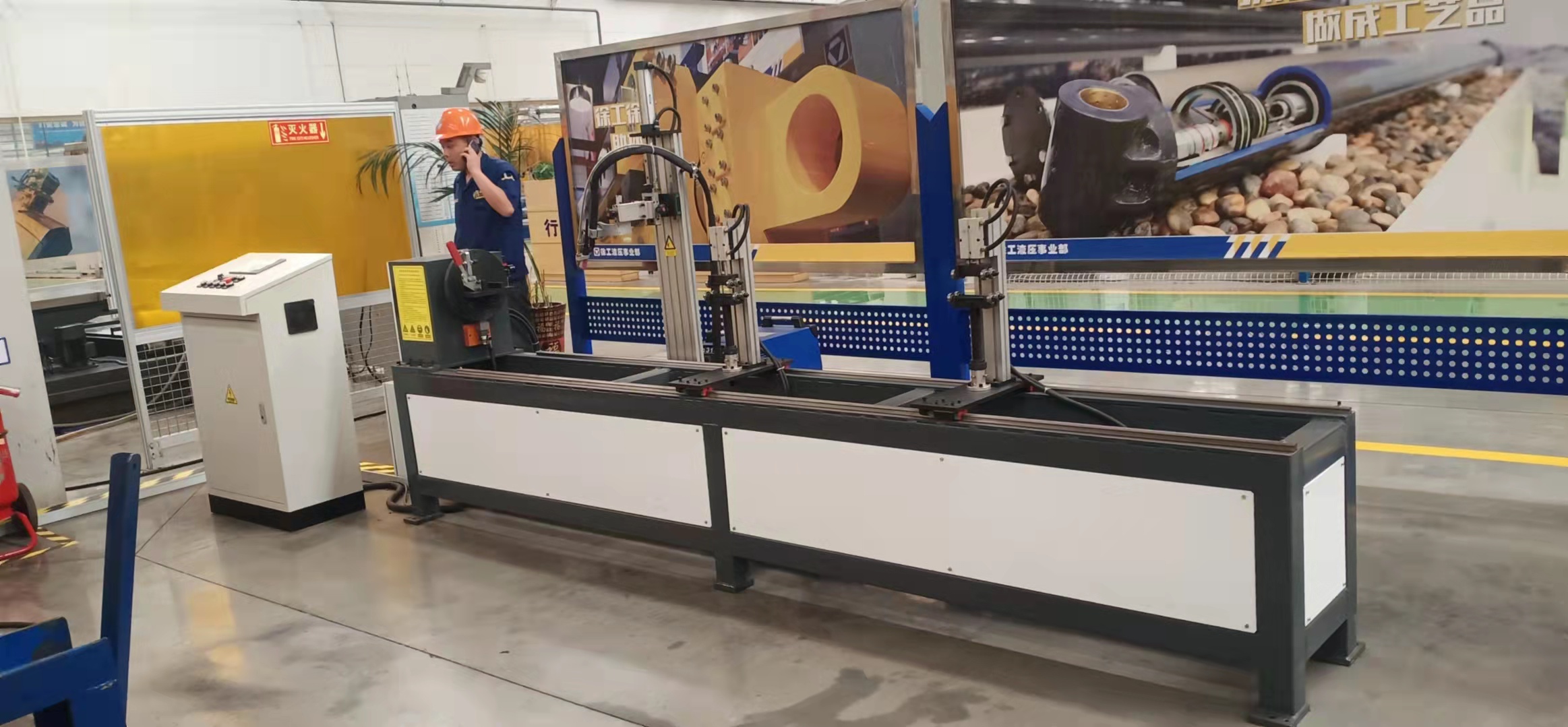

3.臥式與立式環縫焊機相比對焊件的長度沒有過多的限制.三、四米的長管都可輕松焊接，其性能特點：

Compared with vertical circumferential welding machines, there are no significant limitations on the length of the welded parts. Three or four meter long pipes can be easily welded, and their performance characteristics are:

床身采用臥式結構，由焊接結構件經退火后精加工而成，保證床身導軌不變形；

The bed adopts a horizontal structure, which is made of welded structural components after annealing and precision processing, ensuring that the bed guide rails do not deform;

回轉機頭采用直流電機或交流變頻電機驅動，速度穩定可靠；

The rotary head is driven by a DC motor or an AC variable frequency motor, ensuring stable and reliable speed;

主軸端部安裝有焊接夾具或三爪卡盤，用于裝夾定位工件；

The end of the spindle is equipped with a welding fixture or a three jaw chuck for clamping and positioning workpieces;

尾座可采用氣動或手動頂緊方式，端部可根據工件形式的不同選用不同的焊裝夾具或活動頂部；

The tailstock can be pneumatically or manually tightened, and different welding fixtures or movable tops can be selected for the end according to the different forms of the workpiece;

尾座可在床身導軌上滑動，可調整機頭尾座的距離以適應不同長度的工件；

The tail seat can slide on the bed guide rail, and the distance between the machine head and tail seat can be adjusted to adapt to different lengths of workpieces;

焊槍機構可根據工件焊接位置的不同，沿導軌方向移動到相應位置。

The welding gun mechanism can move to the corresponding position along the guide rail direction according to the different welding positions of the workpiece.

環縫焊接專機的原理以及功能特點相關事項就講解到這里了，希望能夠幫助到您，還有什么事項就來我們網站http://www.xfkjgs.com咨詢！

That's all for explaining the principle and functional characteristics of the circumferential welding machine. I hope it can help you. If you have any other matters, please come to our website http://www.xfkjgs.com consulting service
