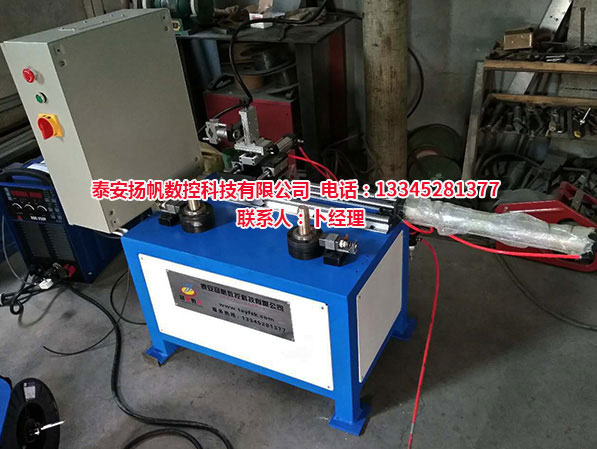

自動焊接設備是電子工業中比較常見的一種自動化焊接技術，它具有焊接質量可靠，焊點光亮、飽滿、一致性好、操作簡單、節約能源、降低工人勞動強度等特點。

Automatic welding equipment is a common automated welding technology in the electronics industry. It has the characteristics of reliable welding quality, bright and full solder joints, good consistency, simple operation, energy conservation, and reduced labor intensity for workers.

1、焊接電源、其輸出功率和焊接特性一定要與所采用的焊接工藝方法相匹配，并配有與主控制器相連的接口。

1. The welding power source, its output power, and welding characteristics must be matched with the welding process method used, and equipped with an interface connected to the main controller.

2、對于送絲機及其調速控制系統，送絲機對送絲速度的控制精度要求較高，送絲機控制電路一定要加速度反饋。

2. For the wire feeder and its speed control system, the wire feeder requires high precision in controlling the wire feeding speed, and the wire feeder control circuit must have acceleration feedback.

3、焊頭采用其移動機構，由焊頭、焊頭支撐架、懸掛小車等組成。它基于精細焊頭機構，其驅動系統一定要采用帶編碼器的伺服電機。

3. The welding head adopts its moving mechanism, consisting of welding head, welding head support frame, suspension trolley, etc. It is based on a fine welding head mechanism, and its driving system must use a servo motor with an encoder.

4、焊件移動或位移的機構，如焊接滾輪架、頭尾架車床、轉臺、變位機等。精細移動機構一定要由伺服電機驅動。

4. The mechanism for moving or shifting welding parts, such as welding roller frames, head and tail frame lathes, turntables, displacement machines, etc. Fine moving mechanisms must be driven by servo motors.

5、焊件夾緊機構。

5. Welding clamping mechanism.

6、主控制器，也稱系統控制器，主要用于各部件的鏈接控制，焊接程序的控制，焊接主要參數的設置、調整和顯示。需要時可擴展故障診斷、人機對話等控制功能。

6. The main controller, also known as the system controller, is mainly used for connecting control of various components, controlling welding programs, and setting, adjusting, and displaying main welding parameters. When needed, control functions such as fault diagnosis and human-machine dialogue can be extended.

7、計算機軟件。焊接設備常用的計算機軟件有：編程軟件、功能軟件、工藝方法軟件、系統等。

7. Computer software. The commonly used computer software for welding equipment includes programming software, functional software, process method software, expert systems, etc.

8、焊頭跟蹤或?qū)驒C構、弧壓自動控制器、焊槍偏航及監控系統。

8. Welding head tracking or guiding mechanism, arc pressure automatic controller, welding gun yaw and monitoring system.

9、送絲系統、循環水冷卻系統、流量輸送和回收裝置、焊絲架、拖鏈及電纜軟管機構結構設計、三部分電控設計等輔助裝置。

9. Auxiliary devices such as wire feeding system, circulating water cooling system, flow conveying and recovery device, welding wire rack, drag chain and cable hose structure design, and three part electrical control design.

10、自動焊接設備又稱機械臂，是自動化焊接設備的重要組成部分。其主要工作包括：焊接、切割、熱射、搬運等。

10. Automatic welding equipment, also known as robotic arms, is an important component of automated welding equipment. Its main tasks include welding, cutting, hot spraying, handling, etc.

焊接操作機依靠著這些組成部分和特殊結構，可以與專用的變位機和滾輪架實現構件的一次裝夾，大幅提高生產效率和加工精度。

Welding operators rely on these components and special structures to achieve one-time clamping of components with specialized displacement machines and roller frames, greatly improving production efficiency and processing accuracy.
